- After-sales Service Provided:Engineers available to service machinery overseas
- Product name:Straight Line Following Filling Machine
- Filling accuracy:±0.5%
- Filling volume:50-1000ml,customized
- Air pressure:0.4~0.6MPa
- Control:PLC touch screen control
- Material:Stainless steel 304 & 316
- Market:Around the world
- Suitable for:Shampoo,liquid,lotion,cream,gel,etc.
- Warranty:1 Year Warrenty
- Type:Filling Machine
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Application:Chemical
- Application:cosmetic
- Packaging Type:case
- Packaging Material:wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:1 Year
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:High Productivity
- Machinery Capacity:4000BPH
- Machinery Capacity:8000BPH
- Machinery Capacity:12000BPH
- Machinery Capacity:1000BPH
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Other
- Core Components:PLC
- Core Components:Bearing
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;GUA
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:cosmetic
- Voltage:220v/380V
- Brand Name:LIENM
- Dimension(L*W*H):L4200*W1200*H1830mm
- Weight:560kgs
- Certification:CE ISO9001
- Filling Material:Water
- Filling Material:Oil
- Filling Material:daily cosmtic
- Filling Accuracy:0.5g
- Marketing Type:Hot Product 2020

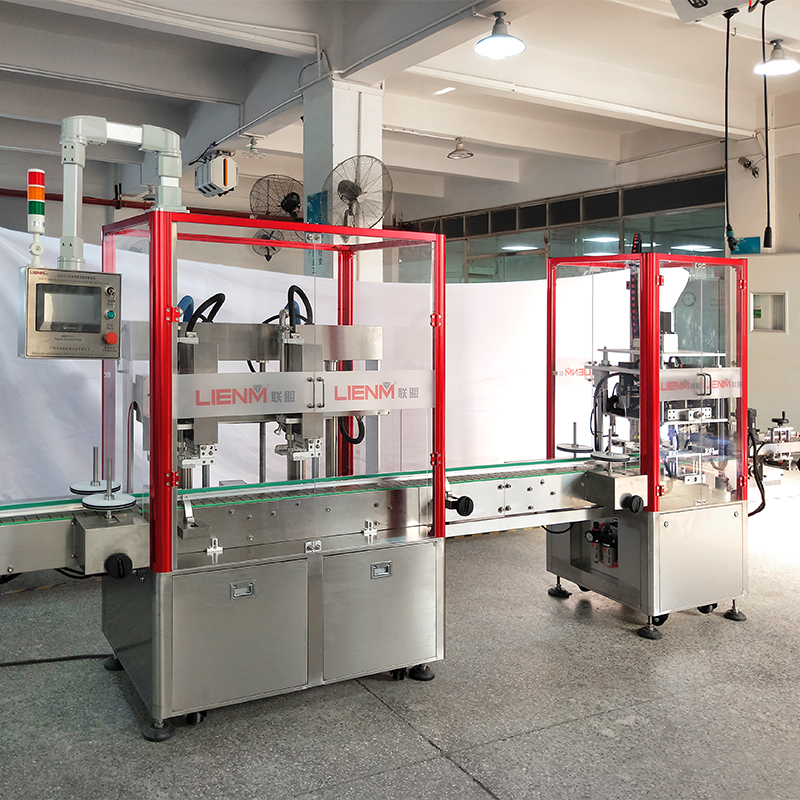

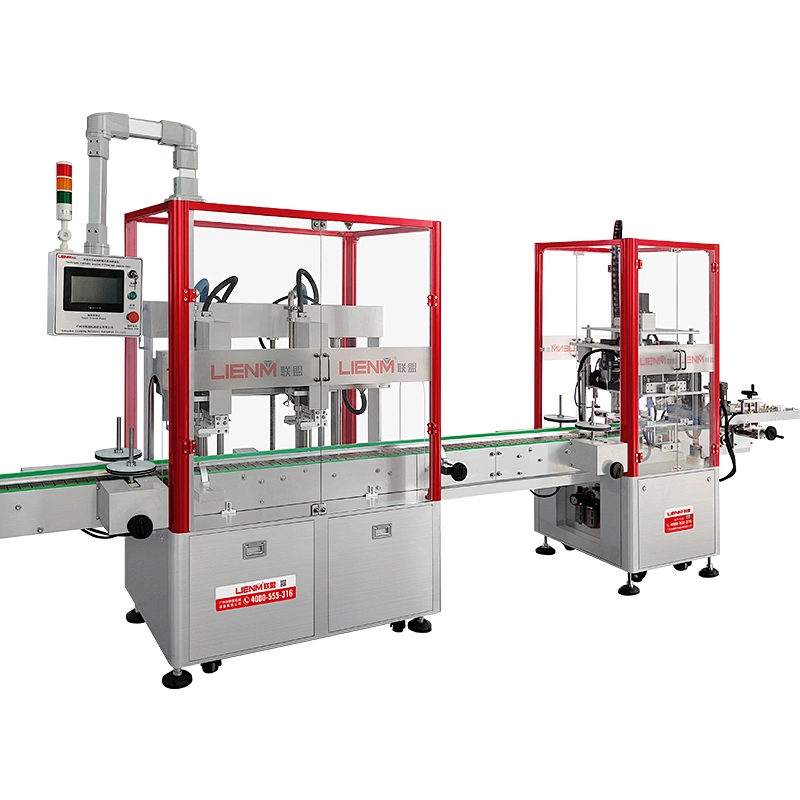

LIENM Filling Machine Manufacturer Full Automatic Volumetric Liquid Filling Machine Hand Sanitiser Soap Shampoo Filling Machine
Product Introduction:
Automatic Servo Filling Machine can be suitable for products of various viscosity such as water injection, semi-fluid etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry, liquid detergent, pesticide and chemical industry etc.
Characteristic:
◆Contact part is SS316L material.
◆Adopt photoelectric control, with fast and accurate automatic quantitative filling; the rotary valve is made of ceramic material without sealing ring, making perfect completely clean.

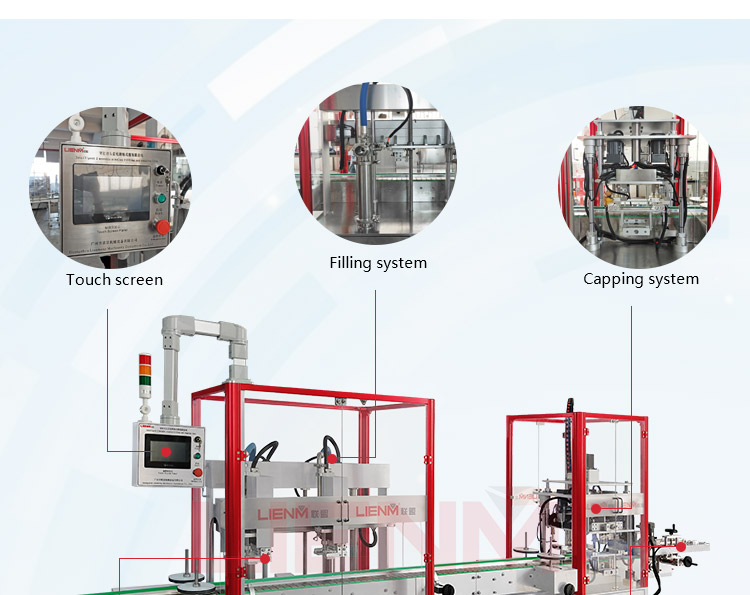

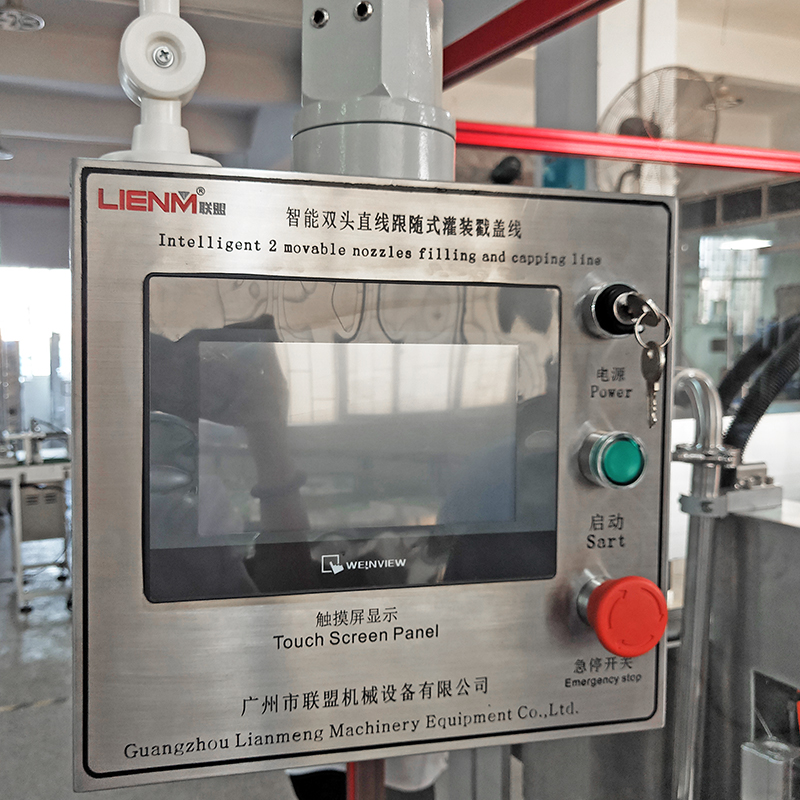

◆Using LS motion controller and HMI man-machine operation interface, the parameters can be called on the operation interface,don’t need adjustment of mechanical position by worker.

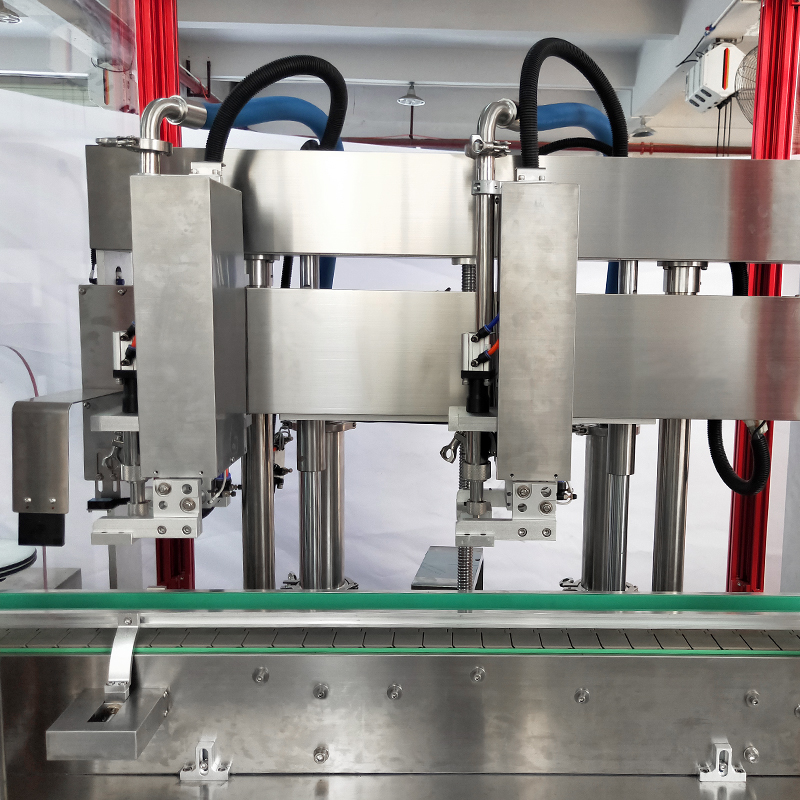

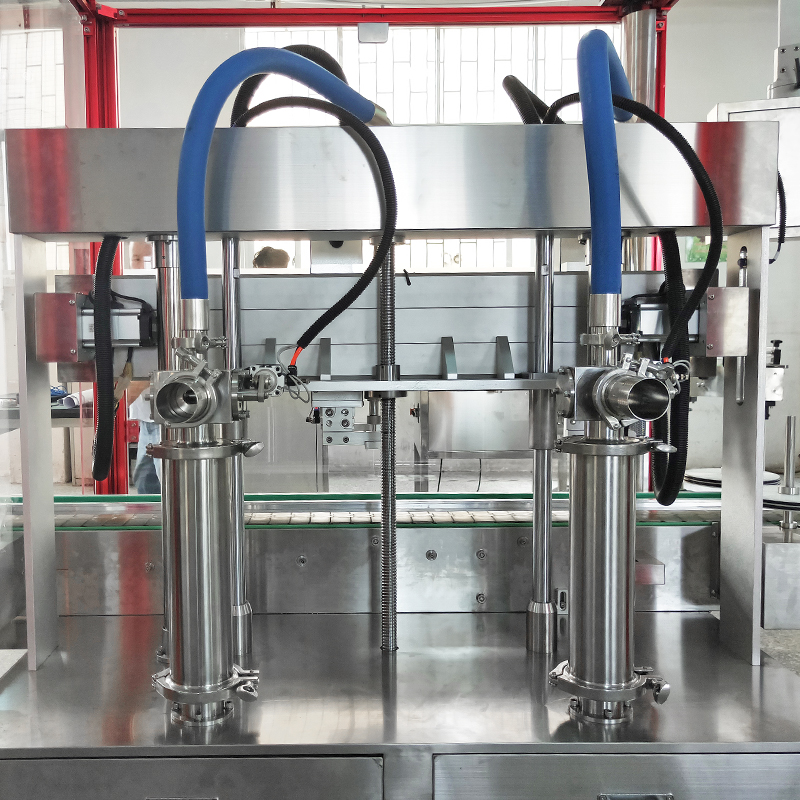

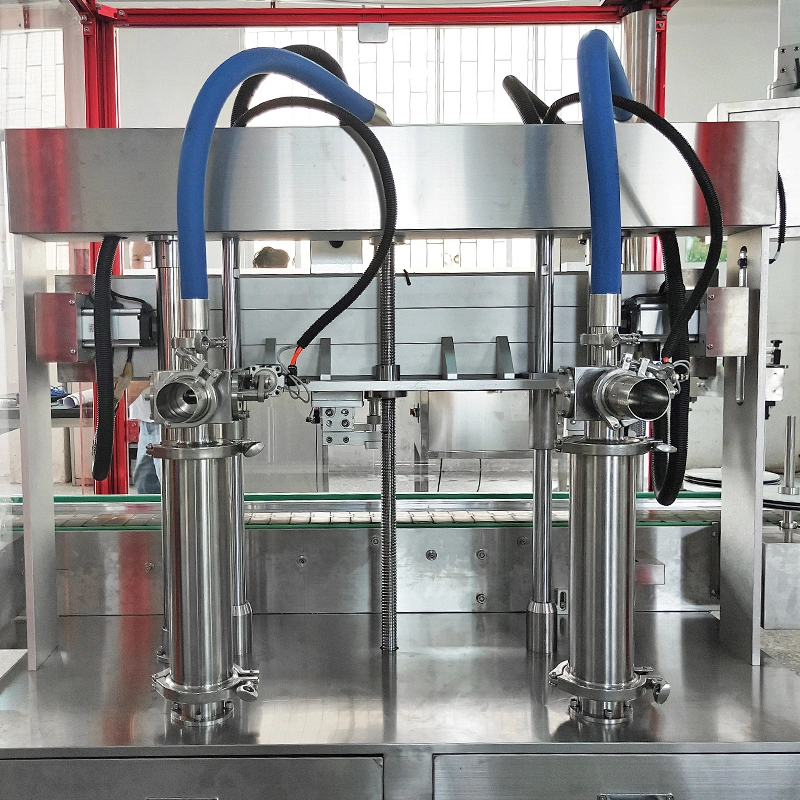

◆The filling system of the machine adopts LS servo filling system, with high filling accuracy and precise positioning.
◆This machine can be easily assembled,disassembled without any tools. The whole connect product part can be easily cleaned. It can be realized that no filling in case of no bottle or insufficient bottle and accurate measurement.
◆The whole machine adopts stainless steel frame structure, transparent PC material frame and SUS304 stainless steel table.
◆Ultrasonic liquid level control.

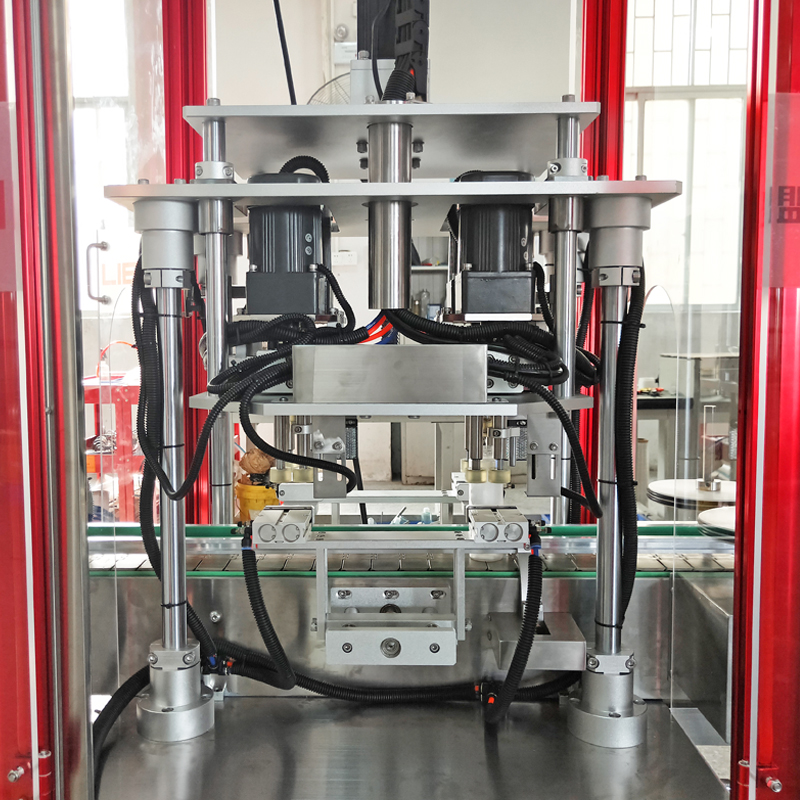

◆Adopt motion control system and servo motor for tracking capping, the bottle does not need to stop, The machine automatically track bottle position for capping, torque can be adjusted.

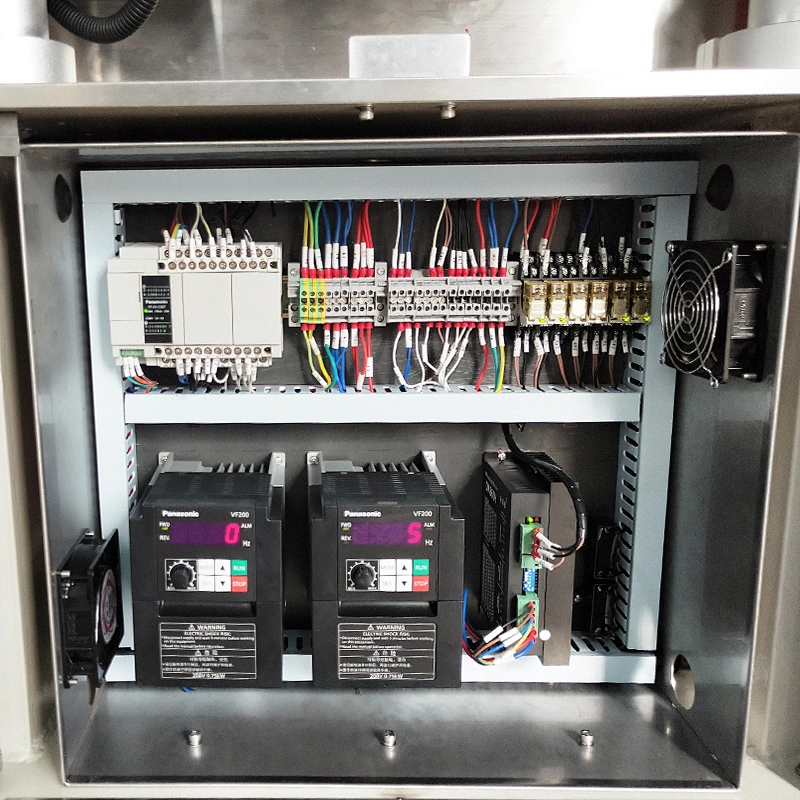

Configuration：
It is made of electrical components of internationally famous brands.
PLC from Korea LS Motion Control System
Circuit breaker, AC contactor from America Honeywell
Frequency converter from Denmark Danfoss
Servo motor, servo drive from Korea LS absolute motion servo
Photoelectric sensor from German Leuze
Switching power supply, buttons, alarm lights from French Schneider brand
Automatic Servo Filling Machine can be suitable for products of various viscosity such as water injection, semi-fluid etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry, liquid detergent, pesticide and chemical industry etc.
Characteristic:
◆Contact part is SS316L material.
◆Adopt photoelectric control, with fast and accurate automatic quantitative filling; the rotary valve is made of ceramic material without sealing ring, making perfect completely clean.
◆Using LS motion controller and HMI man-machine operation interface, the parameters can be called on the operation interface,don’t need adjustment of mechanical position by worker.
◆The filling system of the machine adopts LS servo filling system, with high filling accuracy and precise positioning.
◆This machine can be easily assembled,disassembled without any tools. The whole connect product part can be easily cleaned. It can be realized that no filling in case of no bottle or insufficient bottle and accurate measurement.
◆The whole machine adopts stainless steel frame structure, transparent PC material frame and SUS304 stainless steel table.
◆Ultrasonic liquid level control.
◆Adopt motion control system and servo motor for tracking capping, the bottle does not need to stop, The machine automatically track bottle position for capping, torque can be adjusted.
Configuration：
It is made of electrical components of internationally famous brands.
PLC from Korea LS Motion Control System
Circuit breaker, AC contactor from America Honeywell
Frequency converter from Denmark Danfoss
Servo motor, servo drive from Korea LS absolute motion servo
Photoelectric sensor from German Leuze
Switching power supply, buttons, alarm lights from French Schneider brand
Specification
Model | LM-GS-2T |
Product Name | Follow up style filling capping machine |
Filling Range | 50-1000ml |
Production Capacity | 2000~4000 Bottles/Hour（depend on bottle volume and liquid type) |
Electrical Supply | 220V 50Hz AC |
Power | 6kw |
Required Compressed Air Pressure | 0.4~0.6MPa |
Total Air consumption | 1.8m³/min |
Filling accuracypacking | ±0.5g% |
he tank thickness : | L4200*W1200*H1830mm |
Suitable for | φ120-φ20 （round bottle as example) and height 35-200 |

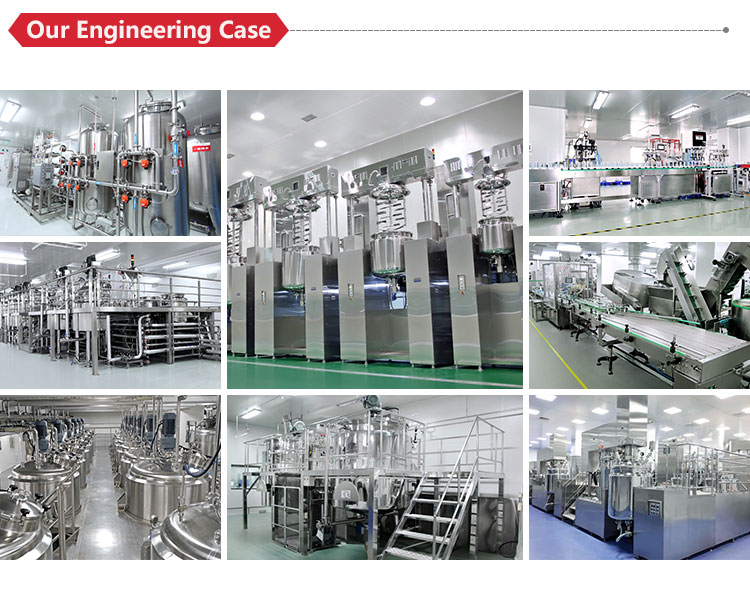

Successful Project
Project in Thailand
Project in India
Project in Russia
Exhibition
FAQ
1. Why choose us?
1.1- We have over 30 years experience on machinery making .
1.2- Our factory is located in Guangzhou and another one is in Jiangsu province,more than 200 workers in our factory .
1.3- We sale good quality machines around the world with good service and got high reputation from our customer. Welcome to visit
our factory!
2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.
3. What about after sale service?
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video
or pictures. If the problem out of your control, we will arrange engineer to your factory.
4.How about warranty and spare parts?
We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you
can buy from us if all the parts that over than 1 year warranty.
5. How can you control the quality and delivery?

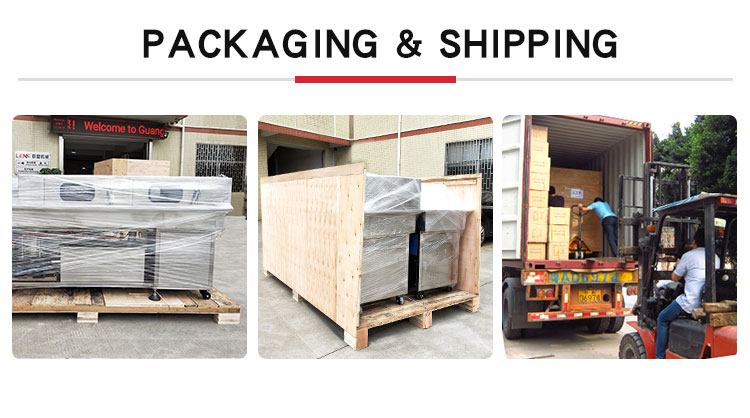

All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise
that our wooden packaging is strong enough and safety for long delivery .
6. What about the delivery time?
In stock machine:1-7days
Usually 7-60 Working days(depened on products).
