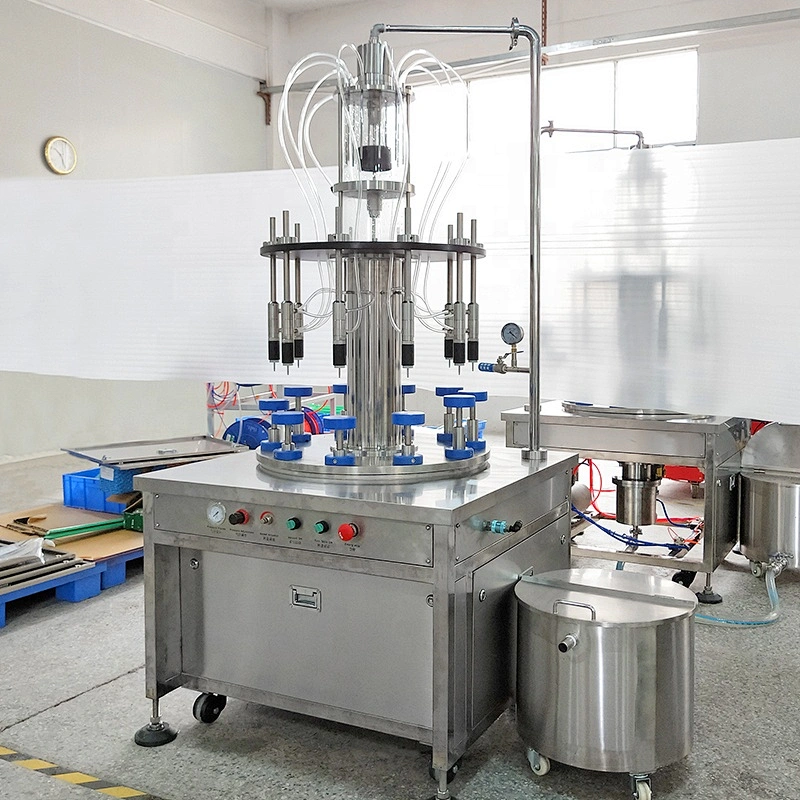

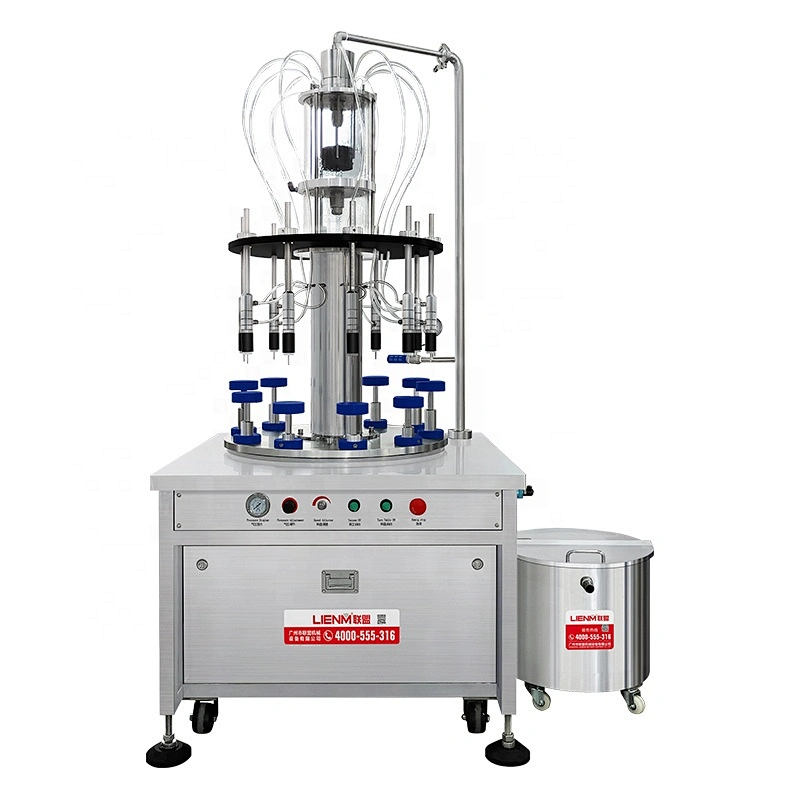

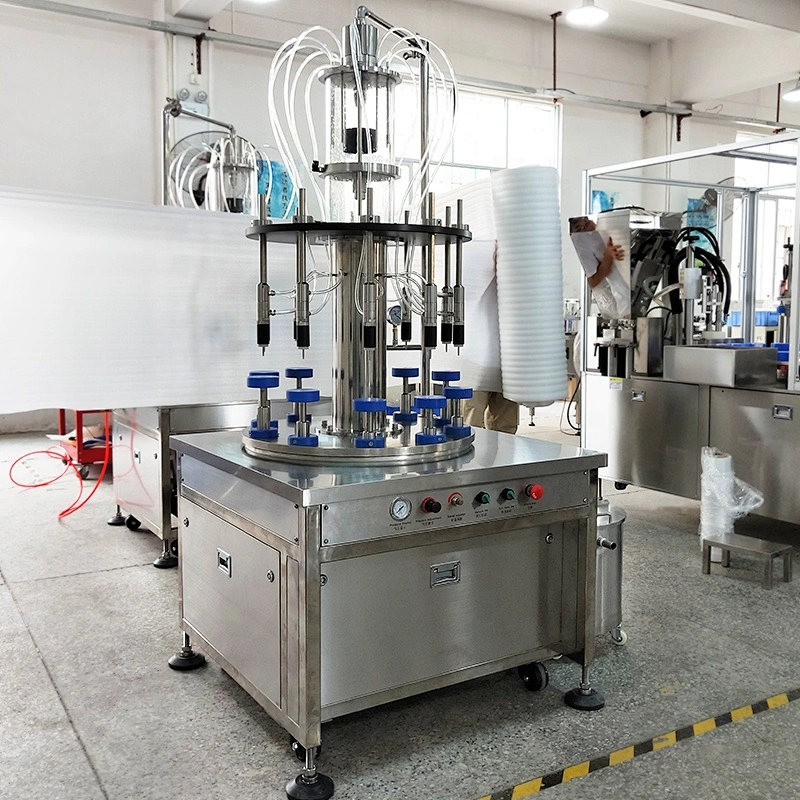

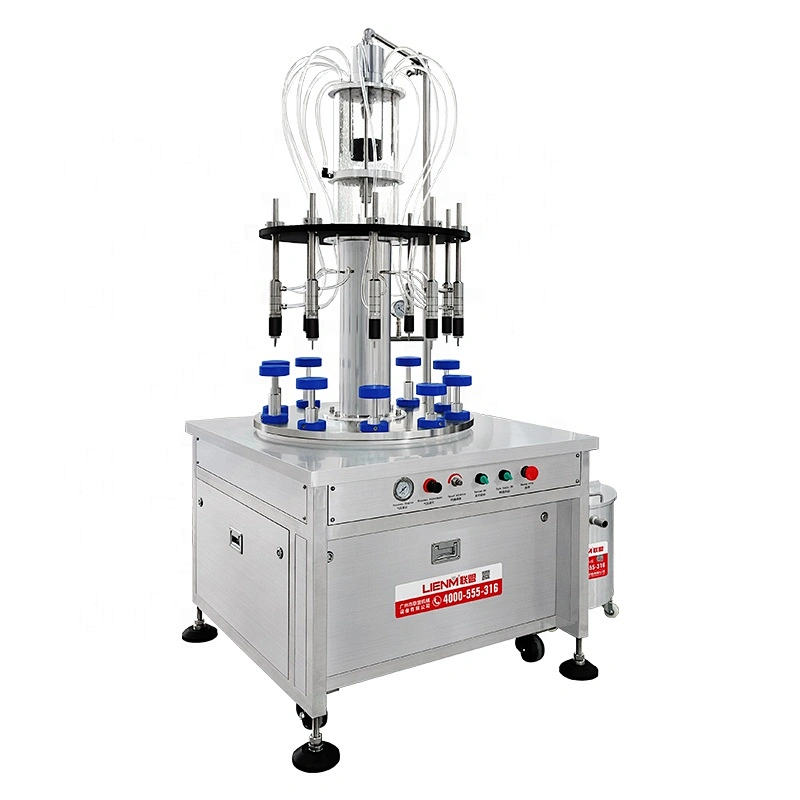

Explosion-proof Rotatory Filling Parfume Filling Machine Pocket Perfume Filling Perfume Maker Machine

Explosion-proof Rotatory Filling Parfume Filling Machine Pocket Perfume Filling Perfume Maker Machine

Model NO.: LM-SG-C
Minimum order quantity: 1 set
Supply Ability: 30 set / Day
Country of Origin: Guangzhou port/Shenzhen Port

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Product name:Ten Heads Rotary Perfume Filling Machine
Capacity:20-50 B/min
Filling volume:15-1000ml
Suitable Bottle Diameter:≤90mm
Suitable Bottle Height:≤250mm
Feature:Fixed liquid level, vacuum filling
Explosion-proof:Optical
Usage:Filling liquid and perfume
Material:304 & 316 Stainless steel
Type:Filling Machine
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:None
Showroom Location:None
Condition:New
Application:Commodity
Application:MEDICAL
Application:Chemical
Application:Pharmaceutical
Application:Perfume
Packaging Type:Bottles
Packaging Type:Other
Packaging Material:plastic
Packaging Material:Glass
Automatic Grade:Automatic
Driven Type:Pneumatic
Warranty:1 Year
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
After-sales Service Provided:Free spare parts
After-sales Service Provided:Field installation, commissioning and training
After-sales Service Provided:Field maintenance and repair service
Key Selling Points:Easy to Operate
Machinery Capacity:4000BPH
Machinery Capacity:Other
Machinery Capacity:2000BPH
Marketing Type:New Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Motor
Core Components:Pressure vessel
Core Components:Pump
Core Components:PLC
Core Components:Engine
Place of Origin:CN;GUA
Applicable Industries:Manufacturing Plant
Applicable Industries:Retail
Applicable Industries:Other
Applicable Industries:Perfume Factory
Voltage:220v/380v
Brand Name:LIENM
Dimension(L*W*H):1168x1168x2000(mm)
Weight:360KG
Certification:CE ISO9001
Filling Material:Other
Filling Material:Water
Filling Material:Perfume
Filling Accuracy:±1%

Product Description

Brief introduction:

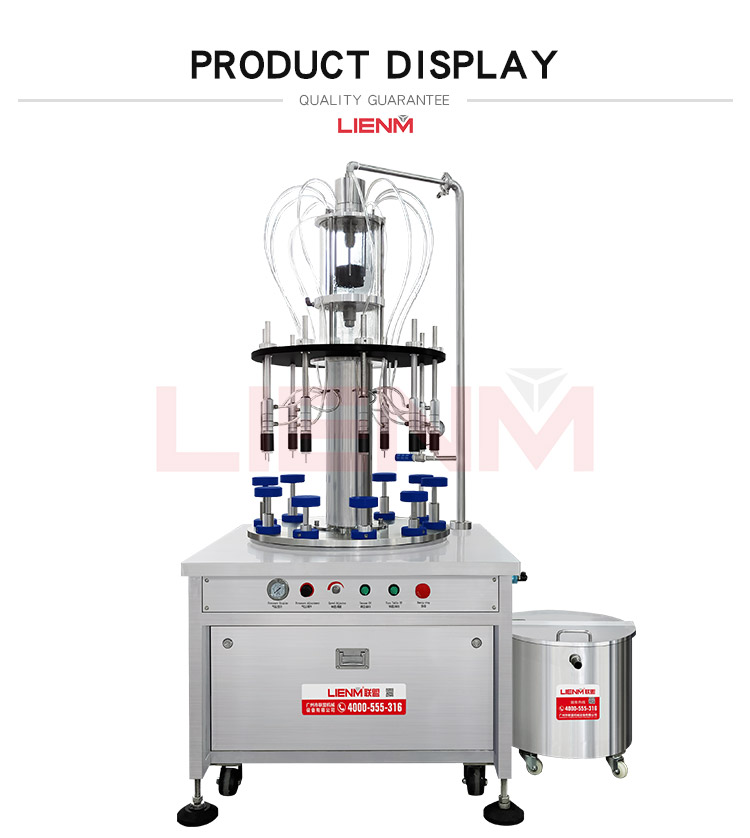

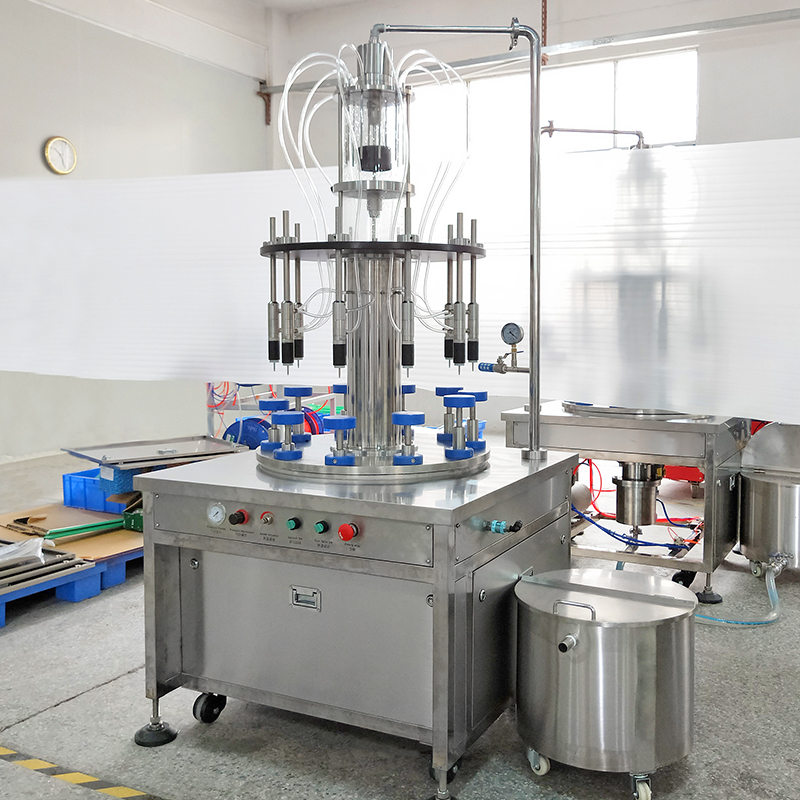

1. LM-SG-C Perfume Filling Machine is used for filling floral water, perfume and other water-based materials.

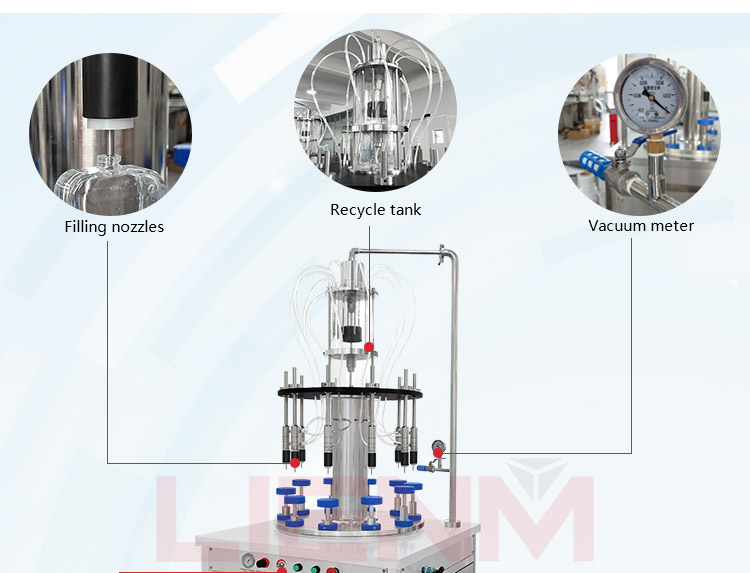

2. This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.

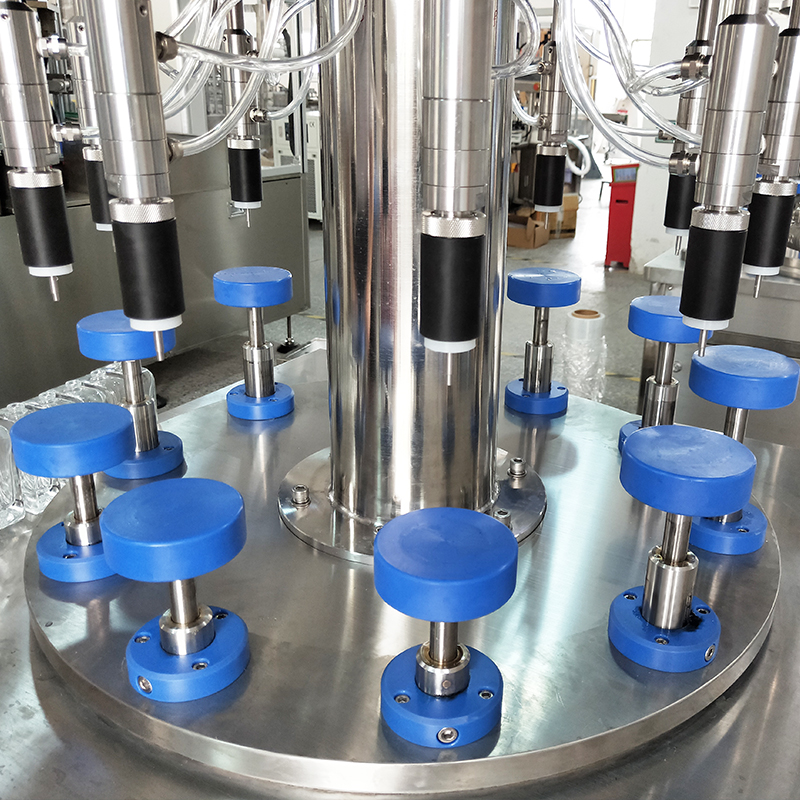

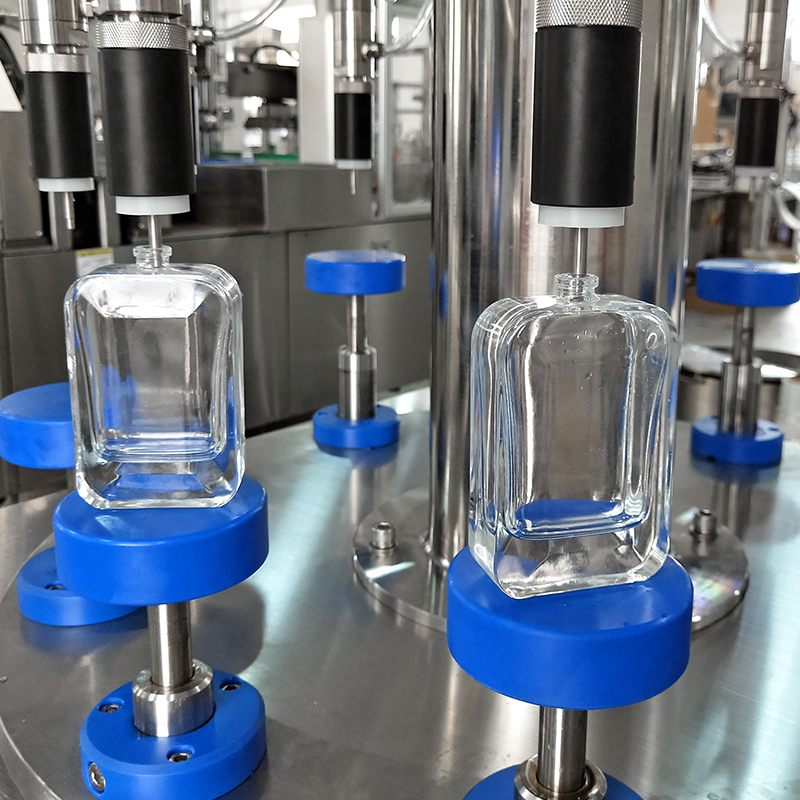

3. The machine is with 10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.

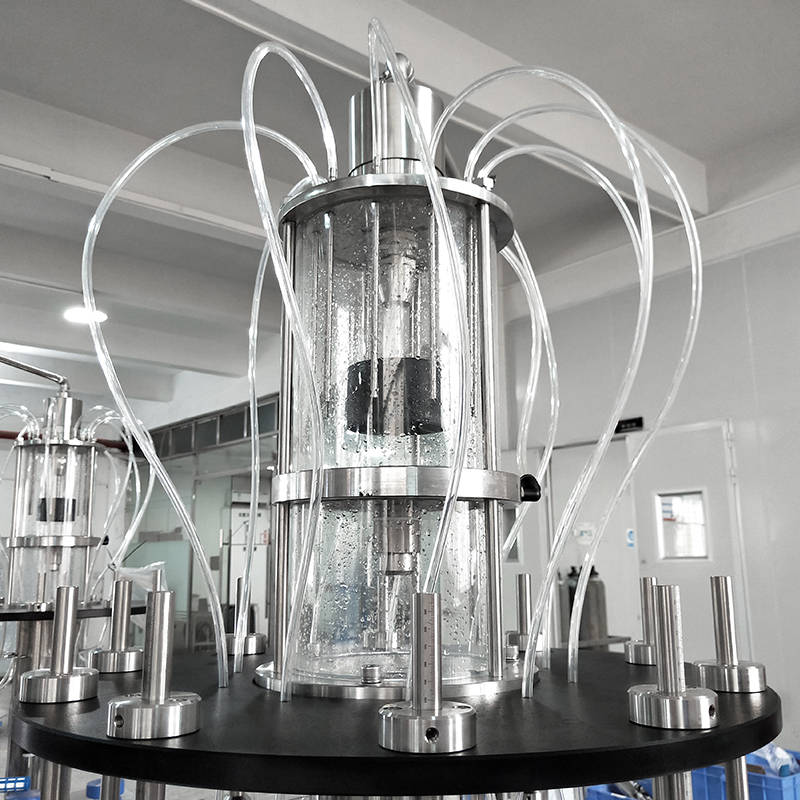

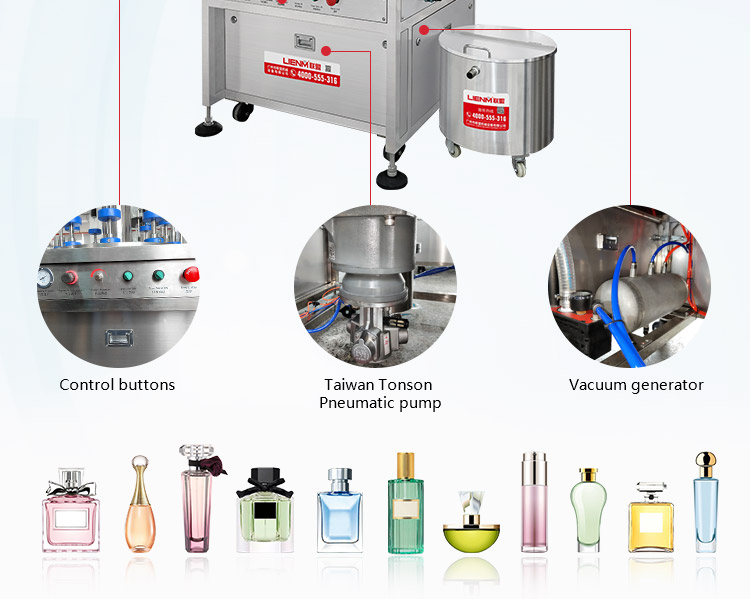

4. The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and labor tensity.

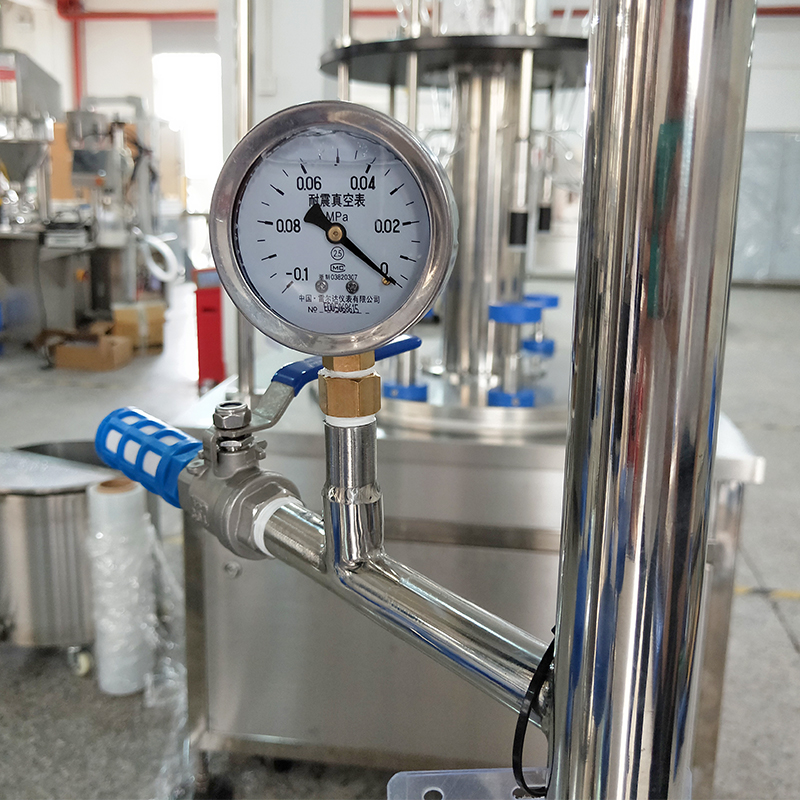

5. Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method Equipment with casters,convenient to move

6. The contact part adopt 316L stainless steel,table with SS 304

7. Suitable for glass bottle and the plastic bottle which will not easy out of shape after vacuum.

Technical Parameter

Type	LM-SG-C
Filling Nozzle	10
Production capacity	20-50bot/min
Filling volume	15~1000ml
Supply voltage	Full pneumatic
N.W	360kg
Dimension	116811682000mm
Single machine noise	≤70dB

Equipent Charcteristics：

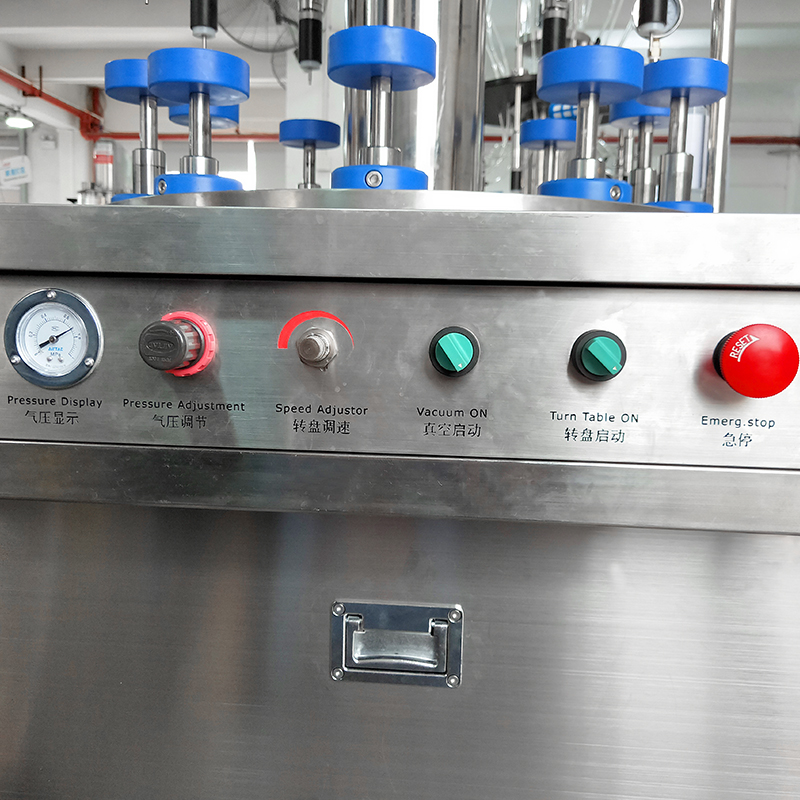

-Pneumatic control

-Wide suitability

-High filling accuracy

-Labor saving

-Easy to use and maintain

Company Profile

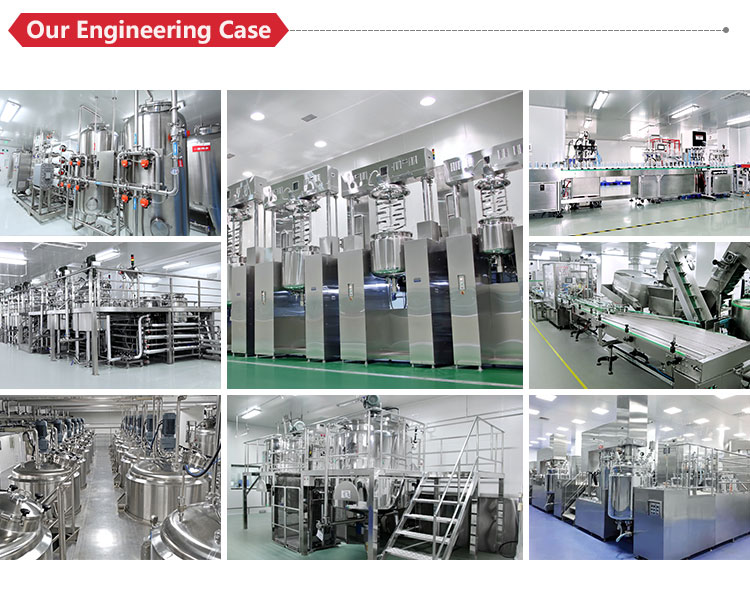

Exhibition

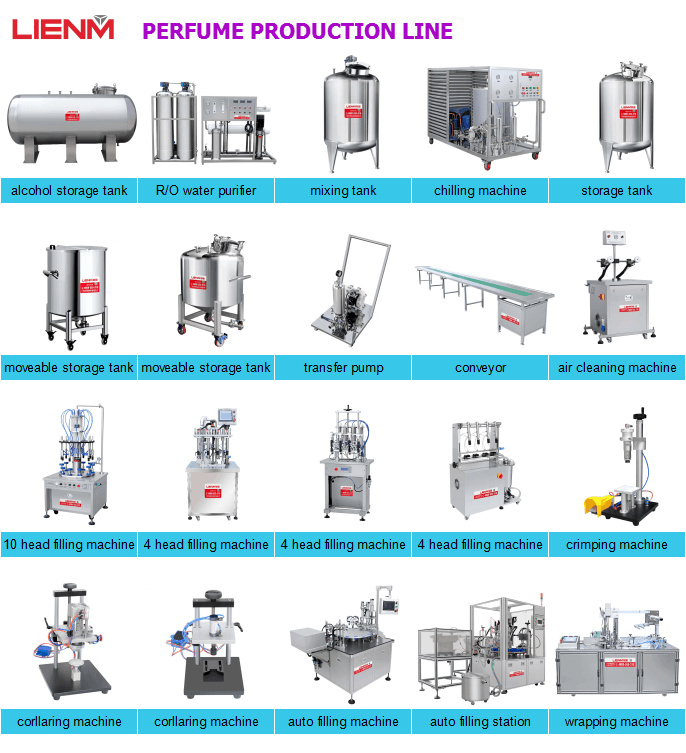

Recommend Products

FAQ

1. Why choose us?
1.1- We have over 30 years experience on machinery making .
1.2- Our factory is located in Guangzhou and another one is in Jiangsu province,more than 200 workers in our factory .
1.3- We sale good quality machines around the world with good service and got high reputation from our customer.

Welcome to visit our factory!

2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.

3. What about after sale service?
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory.

4.How about warranty and spare parts?
We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty.

5. How can you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .

6. What about the delivery time?
In stock machine:1-7days
Usually 7-60 Working days(depened on products).
