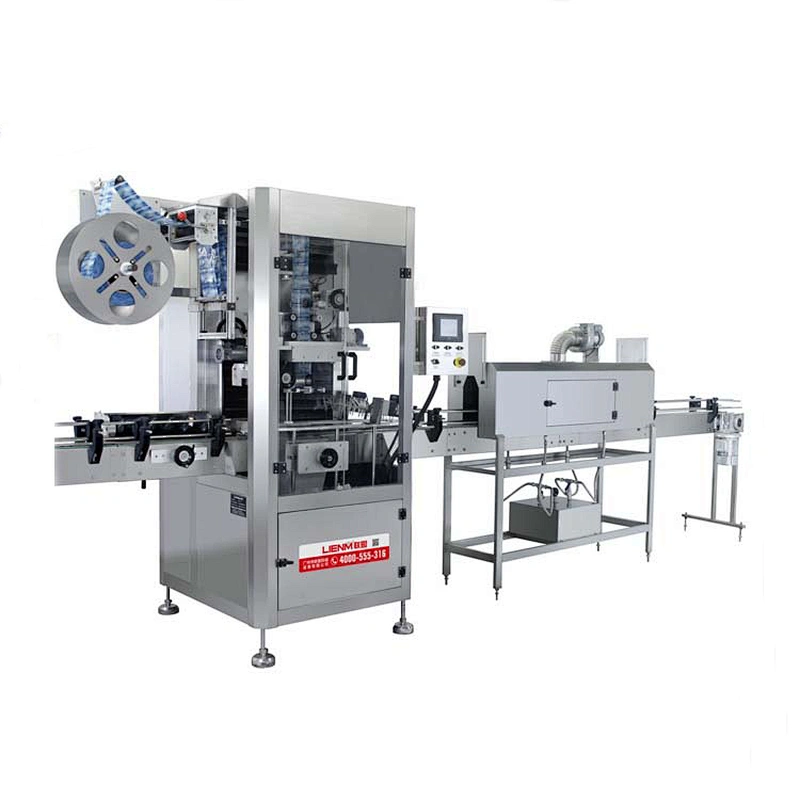

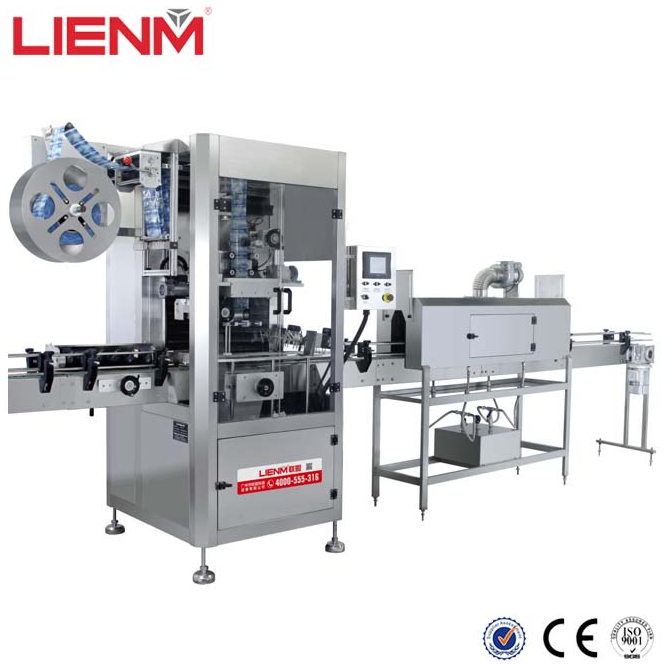

Automatic hot Shrinking tunnel Machine
This machine adopts PLC control, positioning module, servo motor and frequency converter ,its touch screen is featured by a humanized operation.
Varieties suitable for sleeving:
Various types of bottles:round bottles,square bottle,curve bottle and cup-shaped bottle etc.
Technical parameter:
- Input power 1.5Kw
- Input voltage 3,380/220V
- Production efficiency 150(bottle/minute)
- Size of host machine 2100L*850W*200H
- Applicable diameter of bottle body 28mm~250mm
- Applicable length of label 30mm~250mm
- Applicable thickness of label 0.03mm~0.13mm
Characteristic
- Bottle shape : round bottle, flat bottle, square bottle and ellipse bottles
- Automatic position with high precision: full automatic mechanical drive system, sleeve labels directly with high precision and speed.
- The shrinking film with thickness 0.035mm is workable so that save raw materials and labor cost.
- Suitable for label adjustment with 5′—10′ inner diameter
- Man-machine conversation LCD screen control: with Chinese and English control panel.
- Electric eye control automatic feeding : the speed within high speed and low speed are adjustable
- PLC control system
- Augers convey position system: make sure all kinds shape of bottles position and feeding.
- Consumption materials with low cost (cutter blade) and easy changed.
- High stability with mechanical system( aluminum alloy frame )
*Feature:

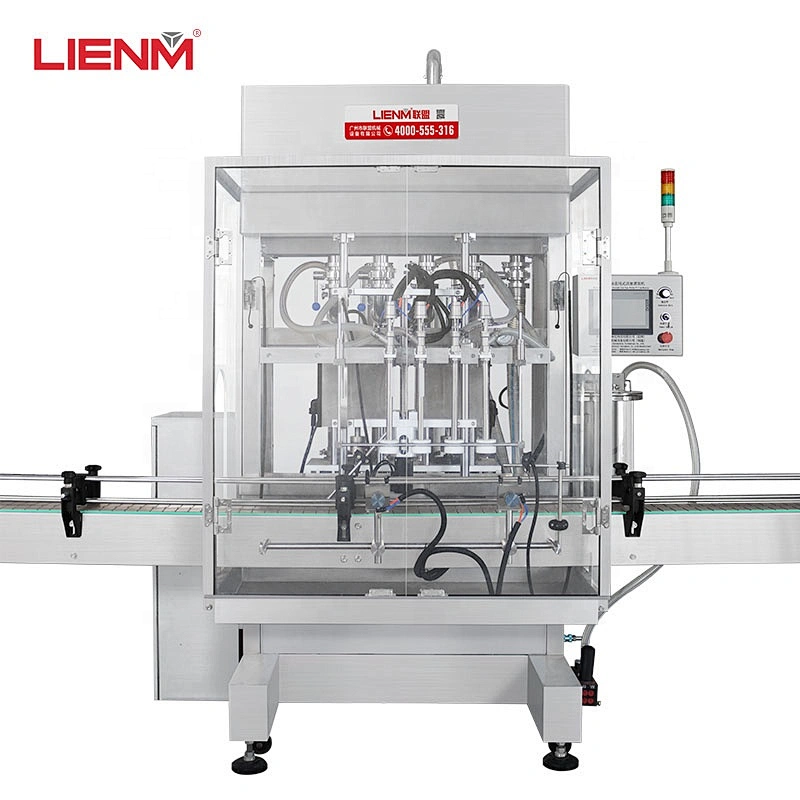

·The full pneumatic filling machine can be classified into elaborate type (T type) and ordinary type (P type)
·The elaborate type adopts Germany FESTO pneumatic components.
·The imported components of excellent quality has ensured its absolute leading position among other same machine in the country.
·The ordinary type selects pneumatic components from Taiwan or Korea.
·The good performance-price ration enables more customers to experience the outstanding quality of LM series machines.
